NexGen Fabrics

Bravo

Available in 15 Colours

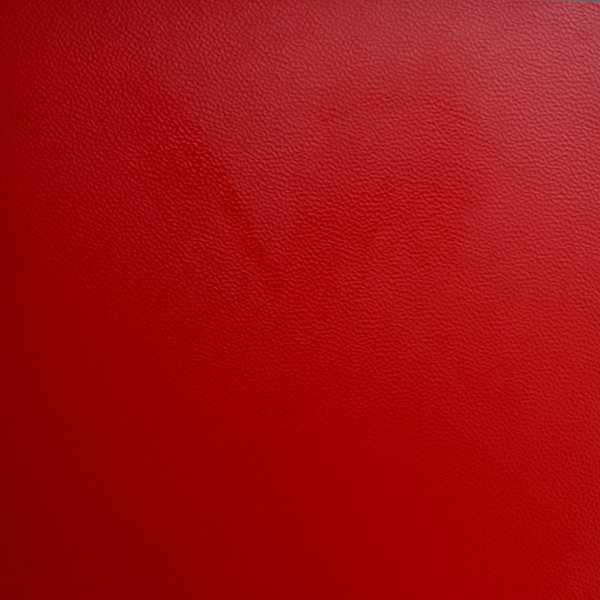

VB-81 Elite Red
Elite Red

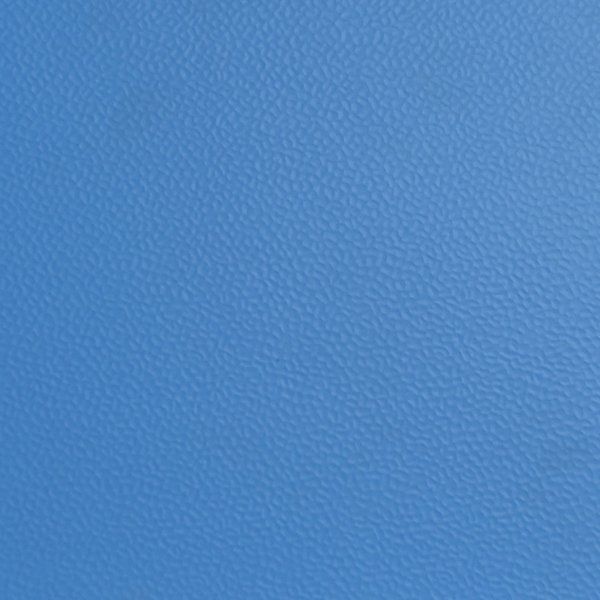

VB-82 Elite Blue
Elite Blue

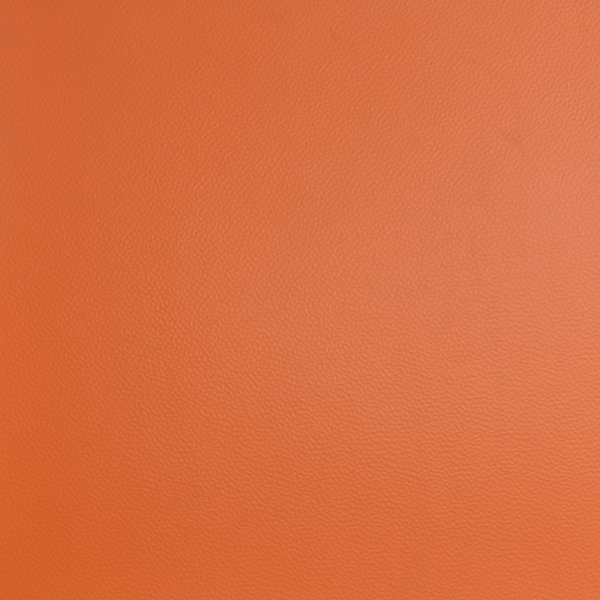

 VB-83 Elite Orange
Elite Orange

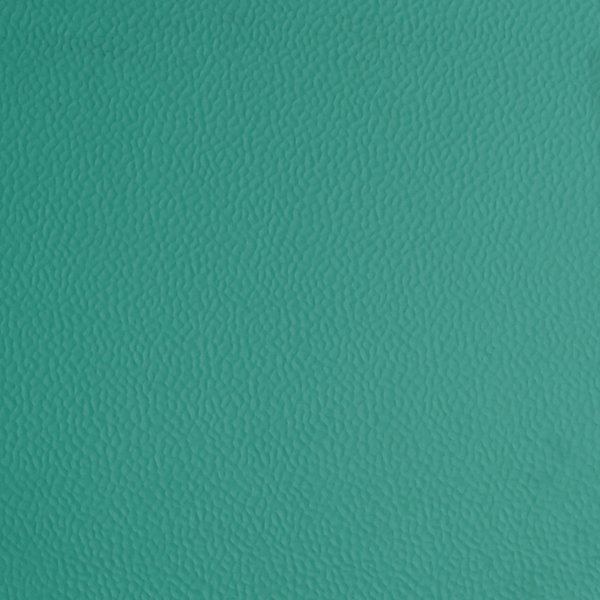

 VB-84 Elite Green
Elite Green

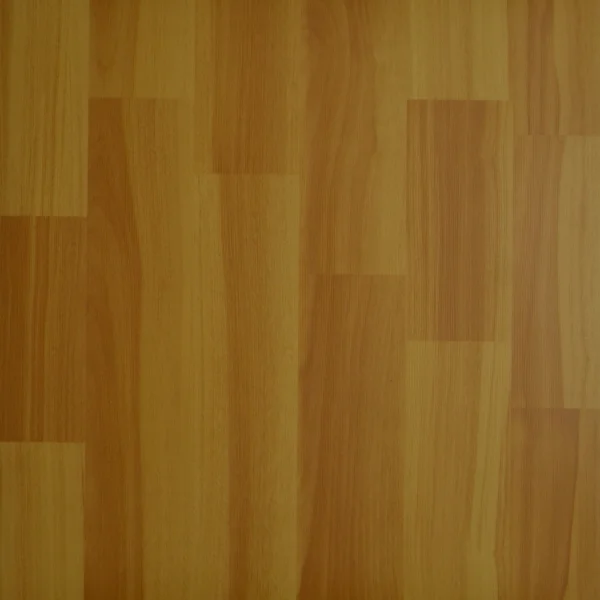

VB-85A Elite Wood
Elite Wood

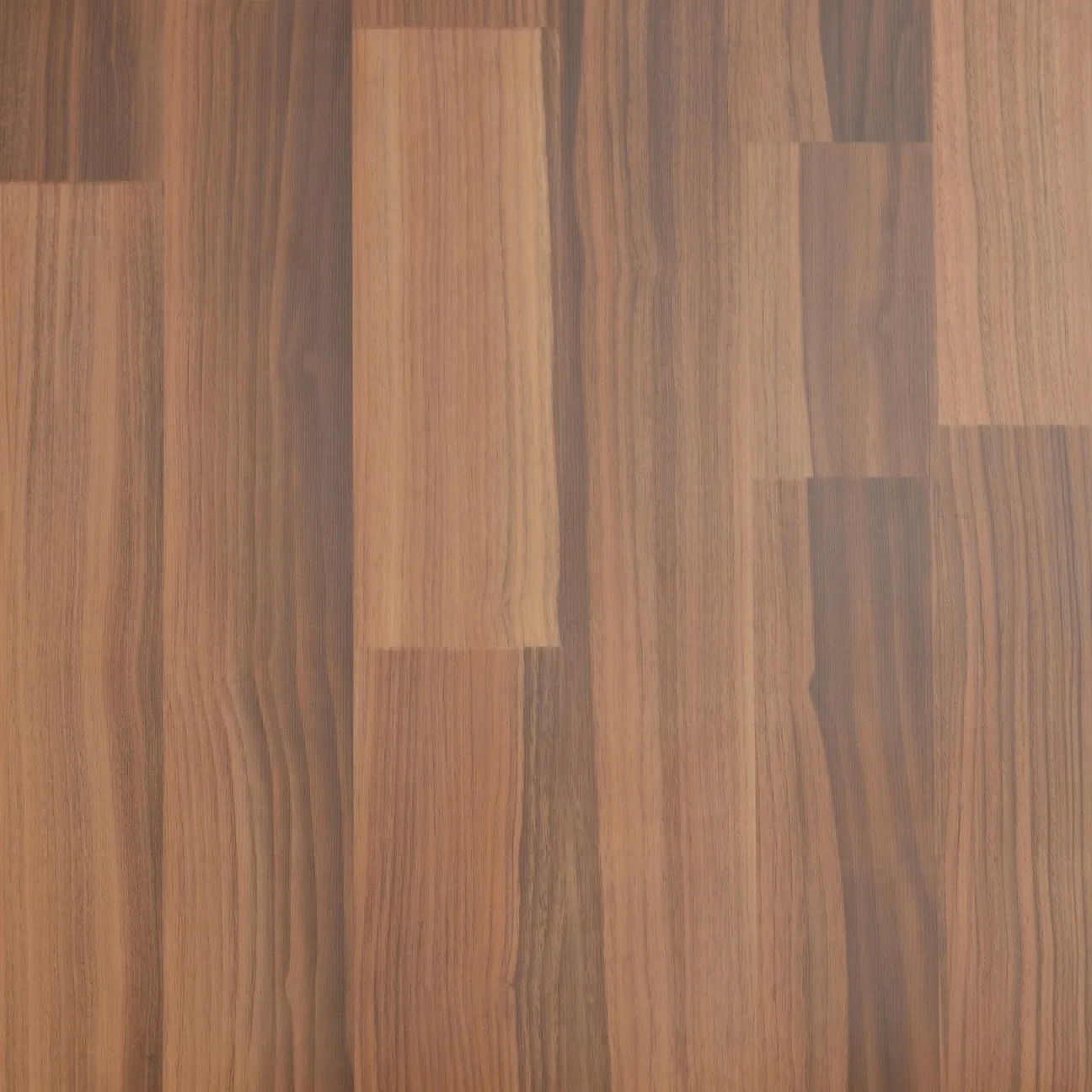

VB-86 Elite Wood
Elite Wood
AR-51 Brown
Gold

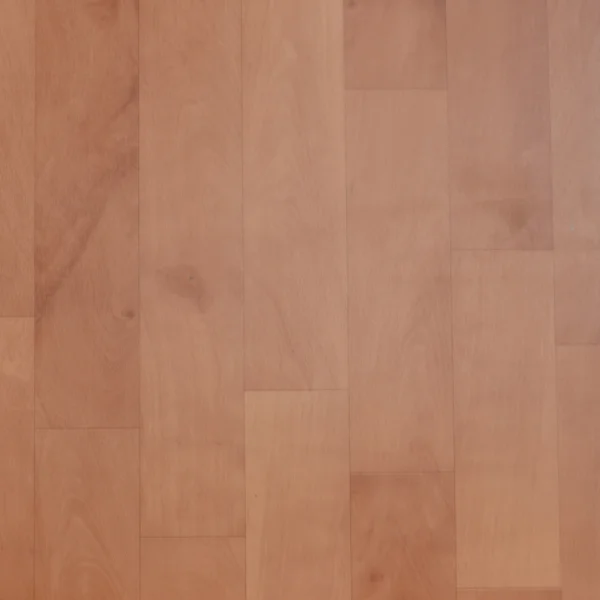

AR-53 Wood
Wood
AR-54 Brown
Brown

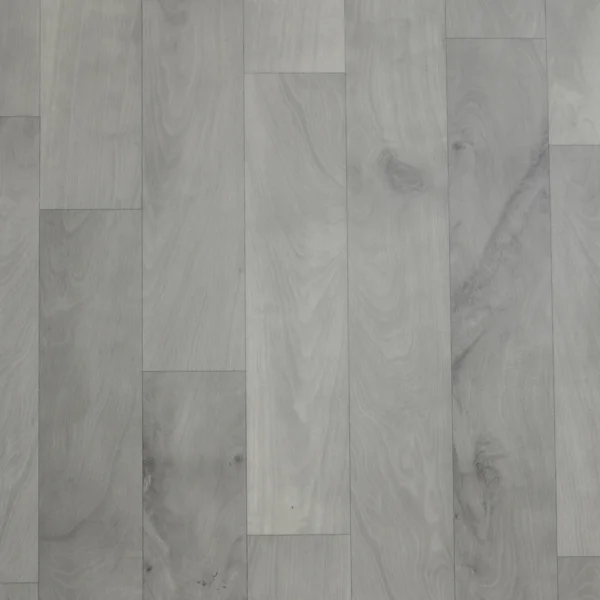

AR-55 Silver
Silver

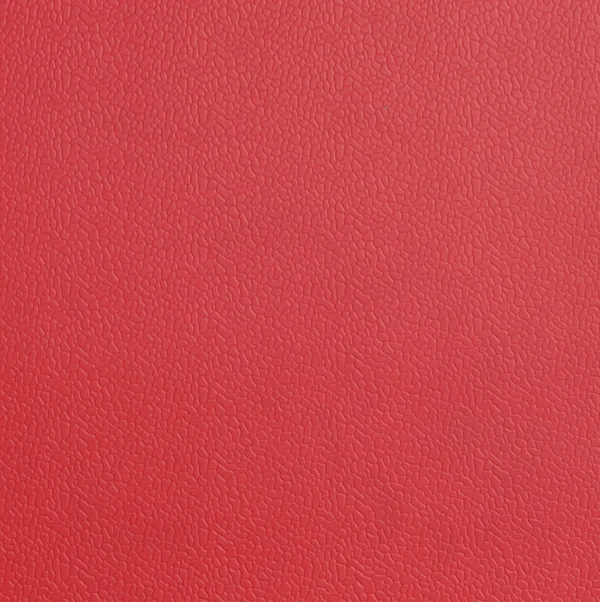

ACE-91 Cherry Red
Cherry Red
ACE-92 Blue
Blue
ACE-93 Orange
Orange
ACE-94 Green
Green

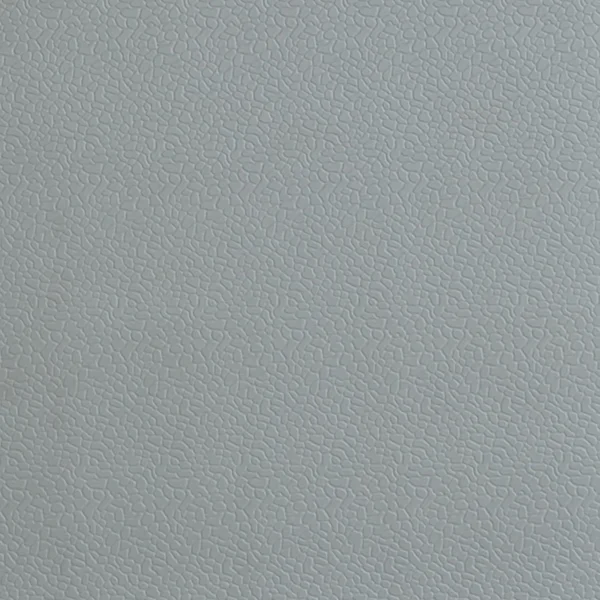

ACE-95 Neo Silver
Neo Silver
VB-81(6.5mm)
VB-81 (6.5mm) Elite Red
Technical Specifications
Description
Download
Request A Quote
Characteristics Test Method Result 4.50 MM Result 6.50 MM
THICKNESS-OVERALL
EN4 26
4.50 MM
6.50 MM

Characteristics

Test Method

Result 4.50 MM

Result 6.50 MM

THICKNESS-OVERALL

EN 426

4.50 MM

6.50 MM

DIMENSION: ROLLS

EN 426

2 MTR X 15 MTR

2 MTR X 15 MTR

TOTAL WEIGHT

EN 430

3.3 KG/SQ

3.40KG/SQ

THICKNESS OF WEAR LAYER

EN 429

0.50 MM

1.00 MM*

DIMENSION STABILITY

EN 434

≤ 0.10%

< 0.10%

RESIDUAL INDENTATION AFTER STATIC LOAD

EN 433

≤ 0.40MM

≤ 0.40MM

FLEXIBILITY

EN 435

20MM MANDREL, PASSED

20MM MANDREL, PASSED

ABRASION RESISTANCE

EN 660-2 & EN 649

WEAR GROUP T

WEAR GROUP T

HORIZONTAL & VERTICAL BURNING TEST

IS 15061-2002

PASS (ARAI)

PASS (ARAI)

FIRE PROPAGATION

BS 476 PART 6

(i)=10.8, (ii)=1.7, CLASS “O”

(i)=10.8, (ii)=1.7, CLASS “O”

HYGIENE

TEST RESULT

DEMONSTRATES

THAT IT INHIBITS

GROWTH OF MICROBES

TEST RESULT

DEMONSTRATES

THAT IT INHIBITS

GROWTH OF MICROBES

COLOR FASTNESS TO DAY LIGHT

ISO 105-B02

>BLUE WOOL STANDARD 5

>BLUE WOOL STANDARD 5

SLIP RESISTANCE

DIN 51130

R 9

R 9

BEARING A CASTOR CHAIR

EN 425

SUITABLE/CONTINUOUS USE

SUITABLE/CONTINUOUS USE

RESISTANCE TO CHEMICALS

EN 423

NO VISIBLE CHANGE

NO VISIBLE CHANGE

SOUND ABSORPTION

ISO 140-8 & EN ISO 717-2

fjLW = 18db

fjLW = 24db

PERFORMANCE CLASSIFICATION

EN 685

33, 34

33, 34

SURFACE PROTECTION

PUR

PUR

Bravo is a premium cushioned sports and wellness flooring designed for modern day requirement of a floor that is heavy duty but soft enough for a comfortable and jerk free workout in a gym, sports court or a fitness centre. The high strength wear layer takes care of the heavy loads, the impregnated Glass Fibre Tissue" reinforcement provides a very high dimensional stability and lay flat properties to the product in any weather conditions. The densely compact cushioned base layer absorbs the jerks and also adds to the acoustical property of the floor.

Salient Features

• Glass Fiber Tissue (GFT) reinforced for dimensional stability and strength

• PUR surface protection

• Superior shock absorbing cushion base layer

• Specially formulated high abrasion resistant wear layer

• Application areas: sports courts, fitness centres, schools, yoga centers, hospitality etc

• Tough and sturdy to withstand heavy traffic and soft enough for a comfortable and jerk free workout
